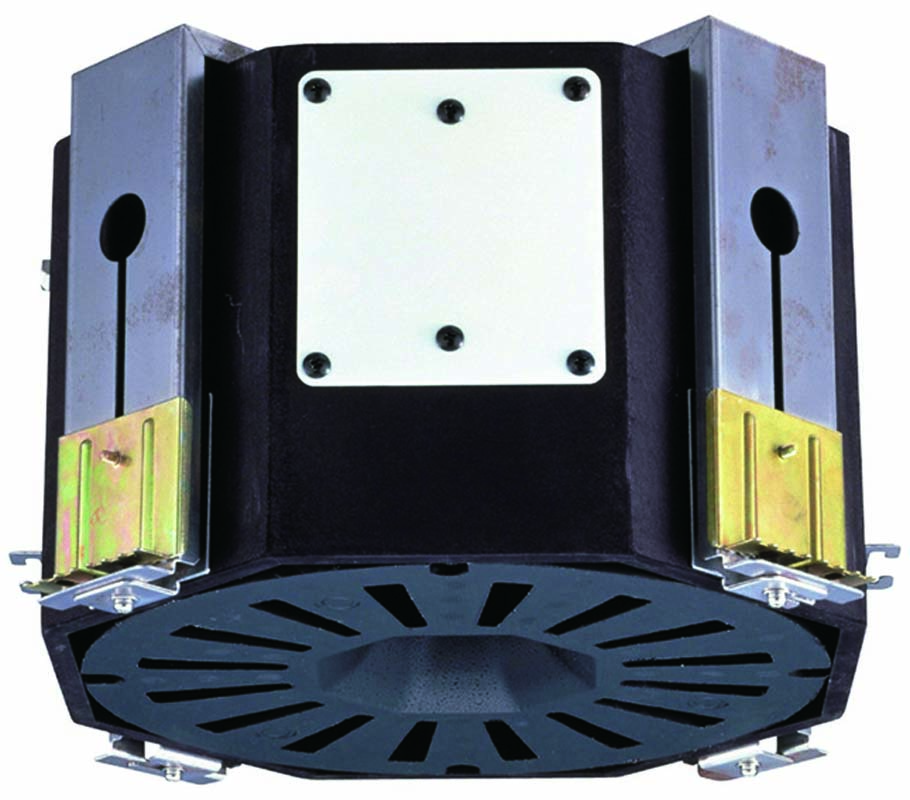

ES-C0651 High-Power 25cm Flush-Mount Ceiling Speaker System

ES-C0651 High-Power 25cm Flush-Mount Ceiling Speaker System

ES-C0651 High-Power 25cm Flush-Mount Ceiling Speaker System

ES-C0651

Designed for easy installation, the ES-C0651 ceiling speaker. Incorporates a 25 cm diameter 2-way coaxial dynamic speaker to ensure high quality sound reproduction.

Enclosure Sealed enclosure
Rated Input Continuous Pink Noise: 60 W, Continuous Program: 180 W
Rated Impedance 8 Ω, When optional matching transformer is used
100 V line: (60 W) 170 Ω, (30 W) 330 Ω, (15 W) 670 Ω
70 V line: (60 W) 83 Ω, (30 W) 170 Ω, (15 W) 330 Ω, (7.5 W) 670 Ω
Sound Pressure Level 96 dB (1 W, 1 m)
Frequency Response 80 Hz - 20 kHz
Speaker Component 2-way coaxial unit
LOW: 25 cm woofer, HIGH: CD horn plus compression driver
(Horizontal) 60 ゜ × (Vertical) 60 ゜
Crossover Frequency 2.5 kHz (passive network)
Input Terminal Push-in terminal
Finish Case: Wood, black
Anchor bracket: Surface treated steel plate
Dimensions Mounting hole: %%c320 mm
Ceiling thickness: 5 - 50 mm
Weight 6.8 kg (including anchor bracket)
Optional Accessory Front Panel: FG-C0651
Matching Transformer: MT-S0601
