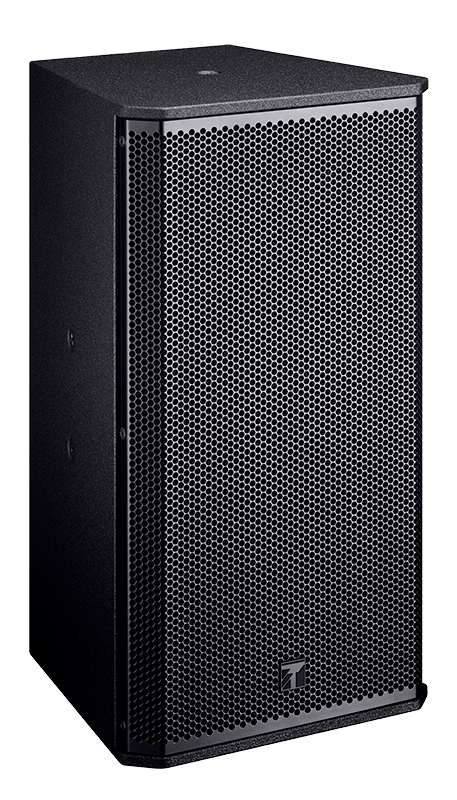

SR-F08 2-Way Passive Speaker System

SR-F08 2-Way Passive Speaker System

SR-F08 2-Way Passive Speaker System

SR-F08

The SR-F08 is pre-tuned with TOA's Sound Philosophy formulated over 80 years experience in sound engineering, which achieves the best sound performance out of the box.
Properly-designed built-in passive network produces high quality sound and excellent output capability. Ideally used as main speakers in small/medium-sized auditoriums and conference rooms or used as auxiliary speakers in large music halls and houses of worship.

System Type 2-way, Passive, Bass-reflex type
Power Handling Capacity 360 W (continuous program)
120 W (continuous pink noise)
Rated Impedance 8 Ω
Sensitivity 91 dB (1 W, 1 m)
Frequency Response 65 Hz - 20 kHz
Crossover Frequency 1.5 kHz
Directivity Angle Horizontal: 90°, Vertical: 60° (Horn at 90° Rotation, Horizontal: 60°, Vertical: 90°)
Speaker Component Low frequency: 20 cm (8") cone-type
High frequency: Compression driver fitted with CD horn
Connector M4 screw terminal, distance between barriers: 11 mm
Neutrik NL4MP × 2
Finish Enclosure: Birch plywood, black, polyurea coating
Grille: Steel plate, Black, 40% gloss, paint
Dimensions 248 (W) × 450 (H) × 243 (D) mm
Weight 11 kg
Option Speaker Mounting Bracket: HY-B0801, HY-UH08, HY-UV08
Ceiling Mounting Bracket: HY-C0801
Speaker Wall Mount Bracket: HY-W0801, HY-WM08
Speaker Stand: ST-34B
